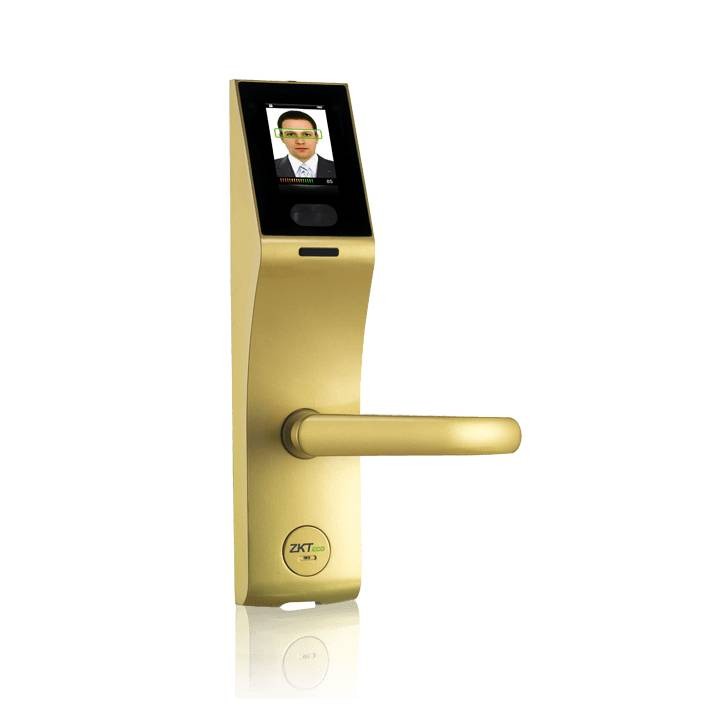

With the new generation face recognition algorithm
• European standard mortise with 5 latches
• Idle handle design to protect door lock
• 3 inch capacitive touch screen
• Icon Menu for easy and fast operation
• Four independent unlocking - face,password,card,mechanical Key
• Smart alarm for low battery & illegal operation
• Data upload/download via USB port
• Support passage mode - Normal Open
• Support query door open logs and illegal operation logs
• External terminals to draw back-up power from a 9V battery
• Backset is 55 mm
• 125khz ID card reader (optional)
• 13.56mhz Mifare card reader (optional)
• Remote open door (optional)
Technical Specifications |
|
|
Material |
Zinc Alloy |
|
Face Capacity |
100 |
|
Password Capacity |
100 |
|
Card Capacity (optional) |
100 |
|
Log Capacity |
30,000 |
|
Communication |
USB flash disk |
|
Options |
ID card, Mifare card, Remote Control Key |
|
Operating Temperature |
0℃ -45℃ |
|
Power Supply |
8 x AA Alkaline Battery |
|
Backup Unlock |
Mechanical Key & 9V Battery |
|
Door Thickness |
35-50 mm (standard) |
|
|
50-65 mm (optional) |
|
|
65-80 mm (optional) |
