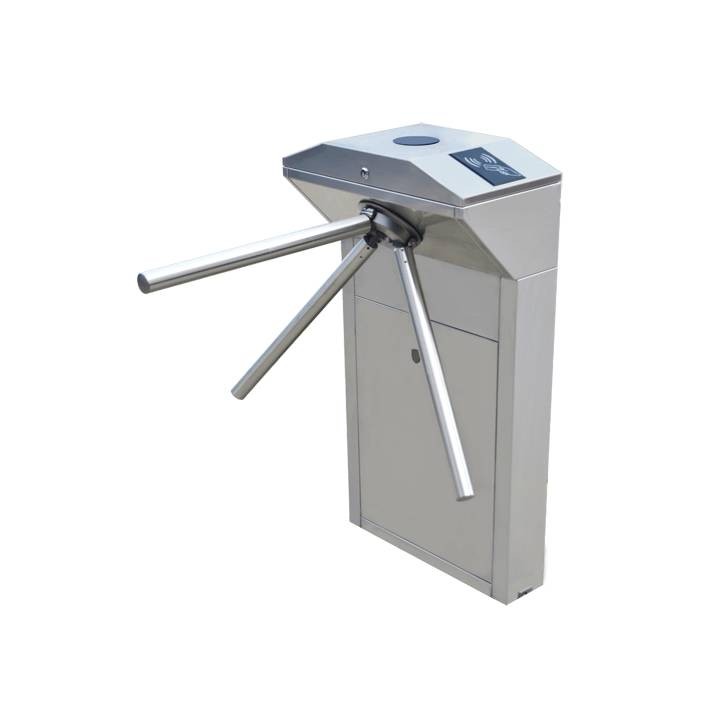

- TS1000 Tripod Turnstile
-
Reliability
• Alloy steel tripod hub prevents mechanical wear
• Casework and tripod arms manufactured in SUS304 stainless steel
• Electromagnets for lock are used only wwhen being activated. They are in standby mode when the device is idle.
• ZK patented compact mechanism ensures the long life of the lubricating oil inside.
• High quality electrical components
Safety and User-Orientated Design
• Drop arm designed for emergency purpose
• No exposed screws, safer for the user.
• Smooth operation designed for mas transit application
• The pictogram on the device indicating access permission and direction of movement
• Special designed case shape, user-friendly for passenger to punch card or finger.
• Anti-tailgate
Easy Integration
• Flexible reader installation plate. Customers can easily integrate with third party redaer
• Standard electrical interface for third party device.
• By using compact mechanism, the turnstile has more space inside for integration
• ZKTeco provides integration service in factory, with board and peripherals installed, ensuring compliance of the system. When the turnstile is delivered, just plug it in and do the setting. Save the cost of installation.
Technical Specifications
Power Supply
AC 220V/110V, 50/60Hz
Operating Temperature
-28 °C- 60 °C
Operating Humidity
5%-85%
Working Environment
Indoor/Outdoor(shelter)
Rated Power
60W
Flow Rate
25- 48 passage/minute
Casework Material
SUS304
Pictogram Indication
Yes
Control System
Input controlled by dry contact
Emergency Button Input
Yes
Dimension
52×98×28(CM) + arm length 50CM
Package Dimension
60×108×38(CM)
Net Weight
34KG
Gross Weight with Package
40KG
Optional Function
Alternative material or shape, third-party access control integration, ticket system integration, passage counter
